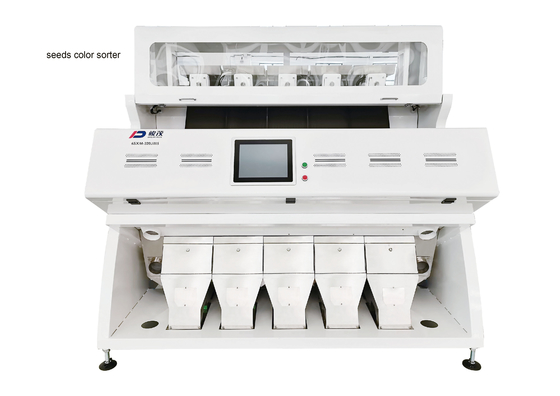

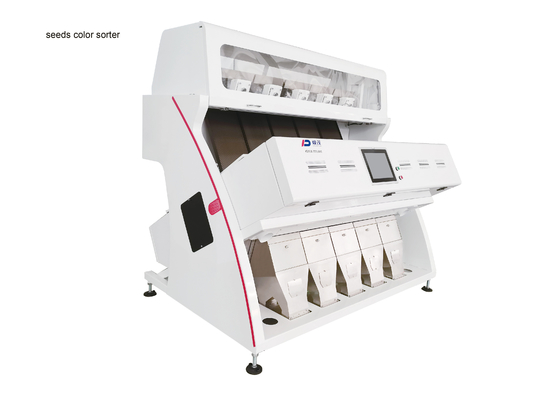

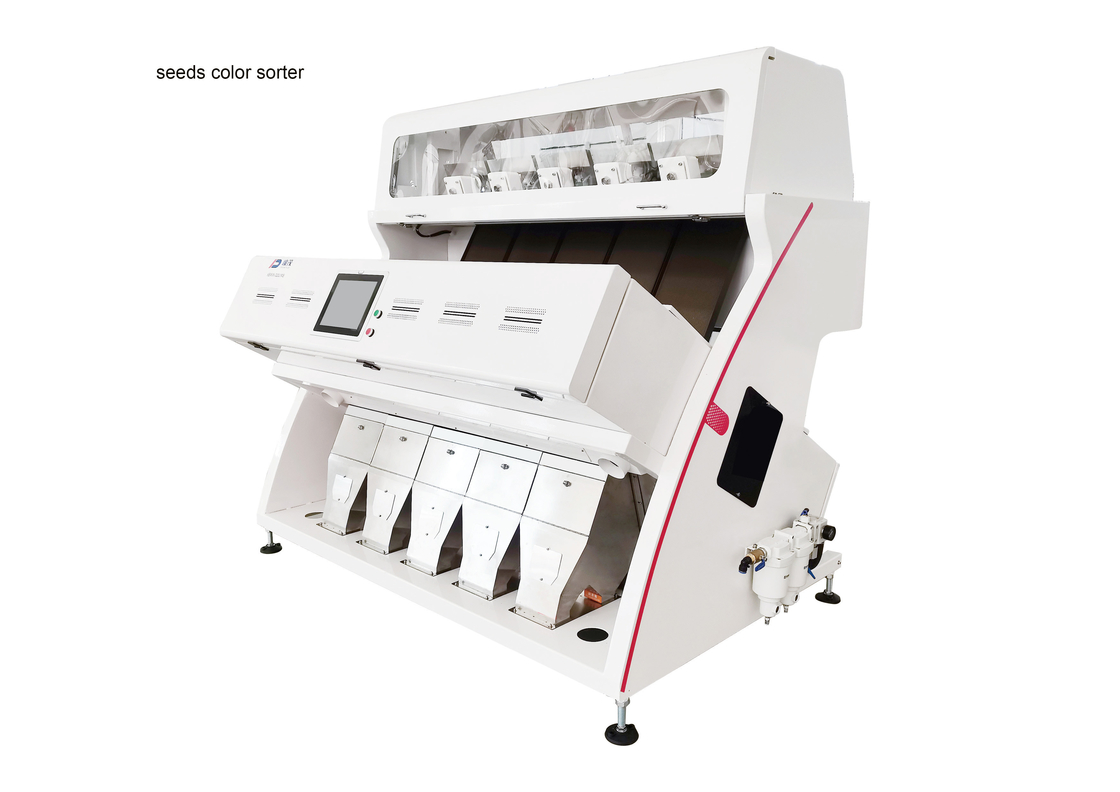

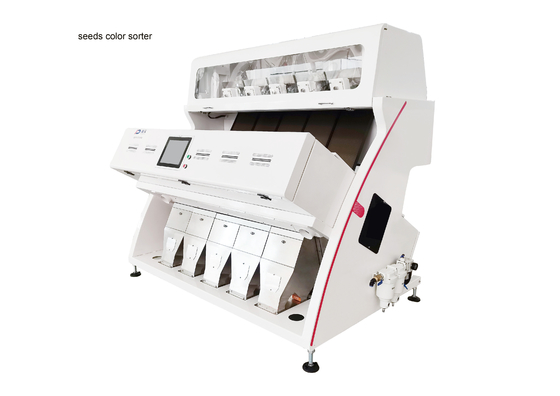

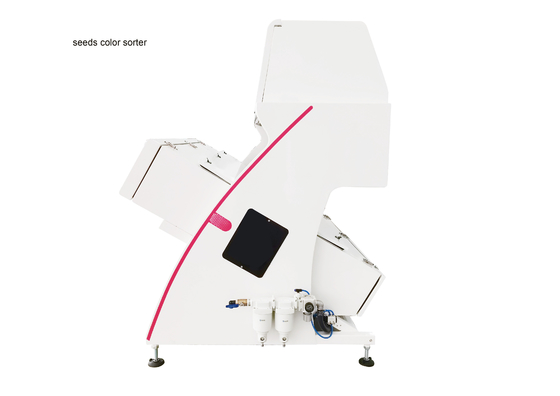

Carrot Seeds Color Sorter 5 Lanes 2 - 3 T/H Output
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-320JM5 | Lanes: | 5 |
|---|---|---|---|
| Channel: | 320 | Capacity(t/h): | 2-3 |
| Carryover(bad:good): | 20:1 | Voltagr(v/hz): | 220/50 |
| Power(kg): | ≤2.6 | Weight(kg): | 1350 |
| Dimmension(mm): | 2190*1620*2040 | Warranty: | 1 Year |
| Highlight: | Carrot Seeds Color Sorter,5 Lanes Seeds Color Sorter,2T/h Seeds Color Sorter |
||
Product Description
Carrot Seeds Color Sorter
Seed Sorting Machine:
Seeds (sunflower, kuttu, etc.) color sorter according to the color difference of the customer requirements of product yield, defect impurity and screening, the inferior is eliminated and impurities and other foreign bodies, intelligent mode of production, fast separation speed and perfect separation efficiency is satisfied with your choice.
Technical Parameter
| Model | 6SXM-320JM5 |
| Output(T/h) | 2~3 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤3.0 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 1350(±5%) |
| Diamension(mm) | 2190*1620*2040 |
Sorting Images
Full Color CCD Color Sorter Machine Features:
Ejectors:
Independent developed intelligent magnetic control
high-frequency ejector has no air leakage problem thanks to
the replacement of intelligent lever flexible return technology
for traditional pressure return technology.
Cloud Interconnection System
Cloud service technical platform, remote control, operation, maintenance, software upgrade can be achieved and it can detect and solve the LED light, electronic, mechanical and adjustment problems. It also can provide real-time online tracking service for the machine operation
monitoring,data acquisition and online instruction.
One Key Intelligent Operation System
The users can set the area of the material color, shape, size and defect by themselves and confirm the rejected material, so the machine can automatically set the sorting solution of the material according to the independent calculating, intelligent recognition and intelligent sorting principles with one key intelligent control technology.
Intelligent Visual Image Capture System
It can realize the visual dynamic image capture system by adopting the high resolution full color CCD sensor and low distortion lens.
Intelligent LED Light Control System
It can adjust the brightness of the LED automatically according to the material sorting requirements and environment changing due to advanced digital automatic LED light adjustment technology. The best sorting performance will be achieved.
Key Components and Brand:
Toshiba brand Full Color Camera CCD with 5400 pixel
Phoenix brand customized industrial lens
Intel and ATI brand DSP, FPGA and chips
Mean Well brand power supply
Advantec brand display
NEC brand touch screen
SMC brand filters
Schneider brand power switch.
