RGB 8 Chutes Glass Color Sorter For Glass Sorting / Recycling
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | ISO9001,SGS, CE |
| Model Number: | JM8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigated Wood Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-512JM8 | Capacity: | 6-8t/h |
|---|---|---|---|
| Chute: | 8 | Power: | ＜4.6KW |
| Type: | Industrial Color Sorter For Glass Sorting | Voltage: | AC 220V/50Hz |
| Usage: | Glass Sorting | Warranty: | 1 Year |
| Highlight: | 8 Chutes Glass Color Sorter,RGB Glass Color Sorter,RGB Glass Sorting Machine |
||
Product Description

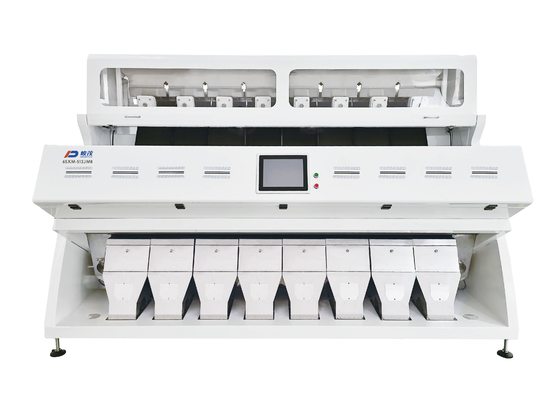

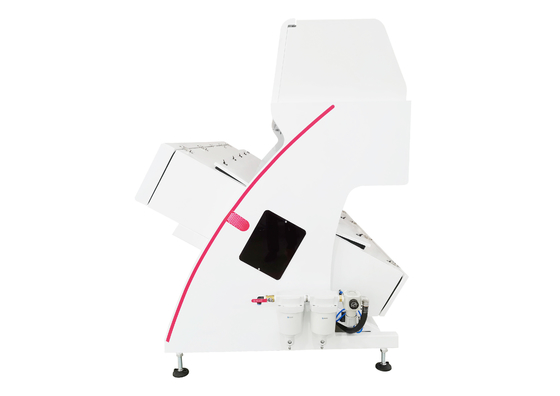

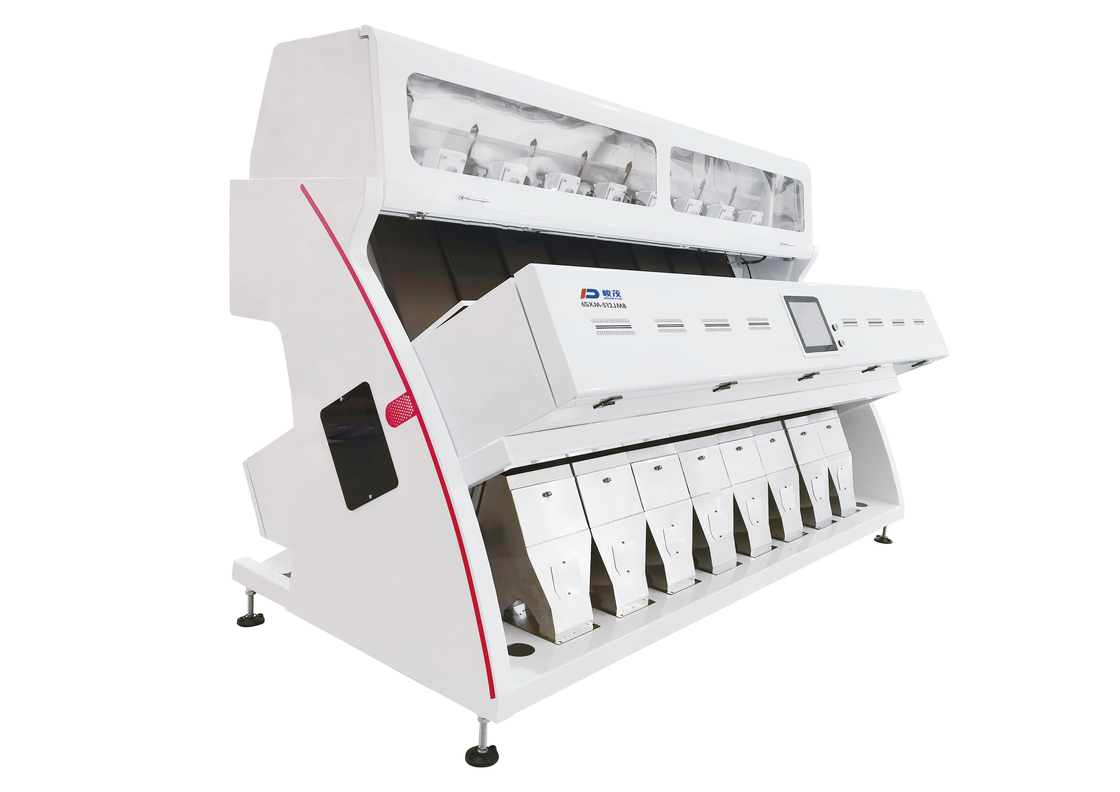

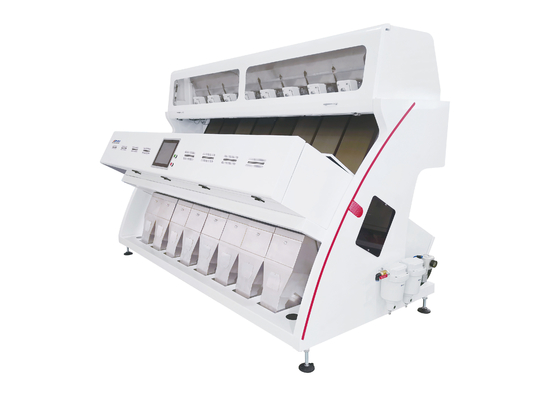

RGB 8 Chutes Glass Color Sorter For Glass Sorting Glass Recycling With Super Quality
What is a Glass Color Sorter?
Glass Color Sorters are among the newest technology in glass processing. The glass color sorter separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.
The glass color sorter can sort waste broken glass according to different colors , and remove other impurities such as stones,ceramics,plastics and so on.
| Model | 6SXM-512JM8 |
| Channel | 512 |
| Capacity(t/h) | 6-8 |
| Carryover Rate(bad:good) | >20:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (v/hz) | 220/50 |
| Power Supply(kw) | ≤4.6 |
| Air Consumption(m3/min) | ＜6.5 |
| Pressure(Mpa) | 0.6-0.8 |
| Weight(kg) | 1800(±5%) |
| Diamension(mm) | 3152*1595*2040 |
Industrial Glass Color Sorter Technical Features
1. High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
2. Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
3. High frequency low consumption valve, flexible contact,wear-resistant super alloy material, life-long matching use.
4. Advanced chute material and design with hundreds of experiments, ensuring smooth flowing, uniorm flling speed and less materal consumption, machine structure is optimized for dsassembly and maintenance.
5. Atera FPGA, advanced image processing system, each group of image processing unt could be synchronized for multple operations and sorting mode. According to the material of complex colors and shapes, adjust sorting operation to guarantee the sorting accuracy.
Industrial Glass Color Sorter Sorting Material
After Sales Services:
• With presence in a variety of countries, Dream Plus is strongly committed to being close to the customer.
• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Dream Plus managed to provide fast, competent and rooted services in the context of customers.
• Application center in Hefei production base offer demo machines for tests and comparison.
• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.
• Under normal working circumstances, Dream Plus machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.
• Service line is available for emergency support.
• Dream Plus products will be serviced and supported wherever customers are located.
• Through the global Dream Plus network and from Dream Plus technical experts, training on Dream Plus machines is available worldwide.
