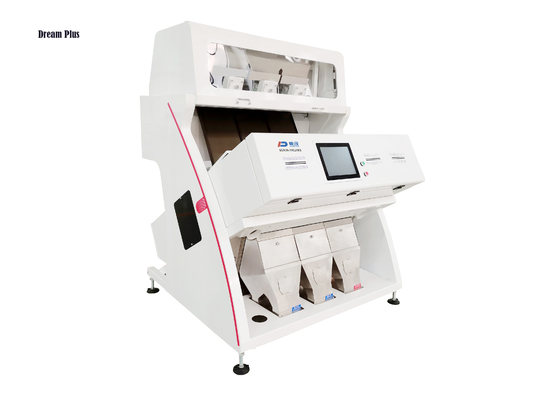

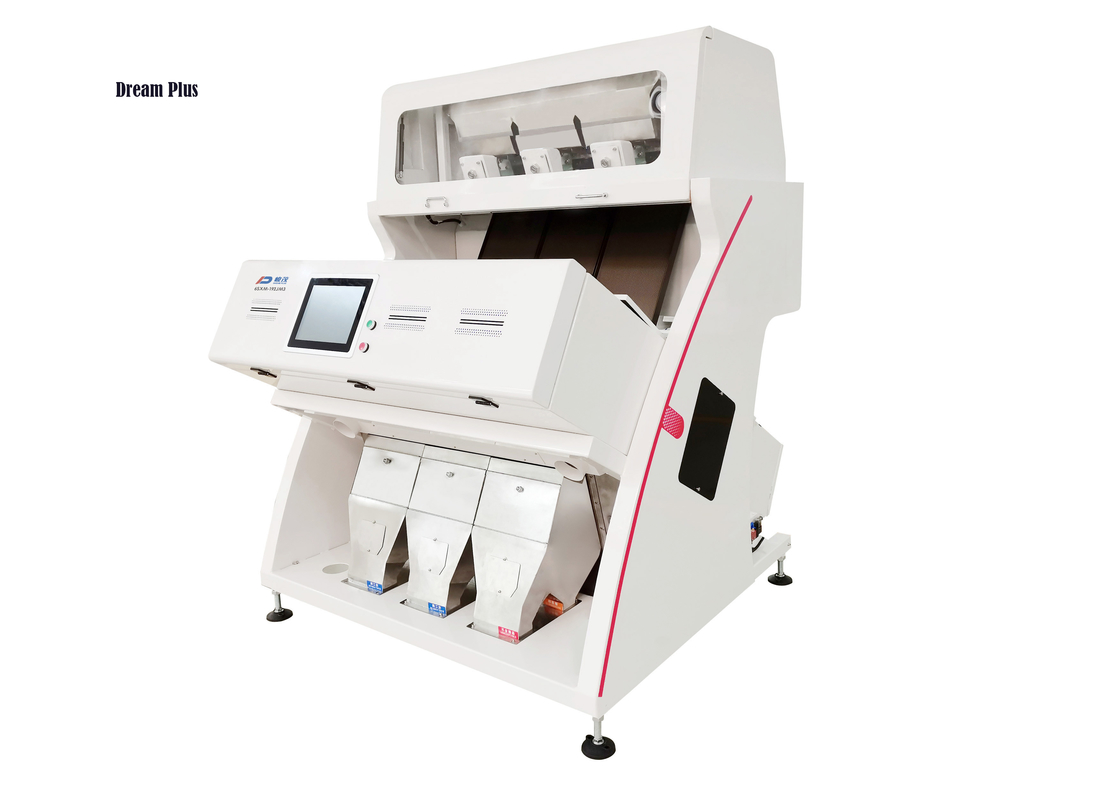

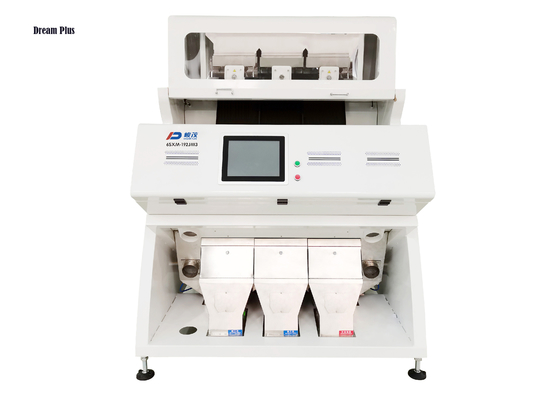

192 Channel Seeds Color Sorter Accuracy Exceeds 99.99%
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-192JM3 | Chute: | 3 |
|---|---|---|---|
| Camera Resolution: | 5400 Pixels | Priamary:Re-sorting: | 2:1 |
| Capacity(t/h): | 3 | Channel: | 192 |
| Power(kg): | ≤2.0 | Warranty: | 1 Year |
| Voltage(V/Hz): | 220/50 | Package: | Fumigated Wooden Case |
| Highlight: | Seeds Color Sorter 99.99% Accuracy,99.99% Accuracy Seed Sorting Machine,192 Channel Seeds Color Sorter |
||
Product Description
Seeds Color Sorter,Sorting Accuracy Exceeds 99.99%
• True Full-Color vision system • RGB smart cameras • 0.06 mm optical resolution • RGB standard version can combine NIR and/or InGaAs • Best sorting performance • Most concentrated rejects • Customized recipe set-up • Machine adaptability to existing working plants • Operational reliability • Minimal maintenance • Cost-effective technology • Versatile technology and user-friendly interface
What is an Optical Color Sorter?
Optical Sorters are among the newest technology in seed and grain processing. This equipm ent separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.
Dream Plus offers a complete range of optical sorters. Machines are available from one to ten chutes, Technology range includes a simple monochromatic version, to bichromatic, NIR, InGaAs, RGB Full Color
Colour sorting is necessary nowadays to ensure the best purity of bulk products, as well as ensuring that the strictest food hygiene and health requirements of end-products are met.
Machine Specifications
| Model | 6SXM-192JM3 |
| Output(T/h) | 0.6-2 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤2.0 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 900(±5%) |
| Diamension(mm) | 1530*1620*1550 |
Sorting Material
Technical Features
• True Full-Color vision system
• RGB smart cameras
• 0.06 mm optical resolution
• RGB standard version can combine NIR and/or InGaAs
• Best sorting performance
• Most concentrated rejects
• Customized recipe set-up
• Machine adaptability to existing working plants
• Operational reliability
• Minimal maintenance
• Cost-effective technology
• Versatile technology and user-friendly interface
