64 Channels Rice Color Sorter From China Sorting Machine For Rice Mill
Product Details:
| Place of Origin: | China Hefei |
| Brand Name: | Dream Plus |
| Certification: | CE, SGS, ISO9001 |
| Model Number: | JM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $5000-$6000/set |
| Packaging Details: | wooden carton |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, , T/T |
| Supply Ability: | 1000/set |
|
Detail Information |
|||
| Material: | Stainless Steel | Color: | White |
|---|---|---|---|
| Warranty: | One Year | Voltage: | -220v50Hz |
| Type: | Rice Color Sorter Machine | ||
Product Description
Product Discription
Rice color sorter
The rice color sorter is a device that uses photoelectric detection technology to automatically sort out the heterochromatic particles in the granular material according to the difference in the optical characteristics of the material.
Raw materials are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate. Under the effect of light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Features of Rice Color Sorter

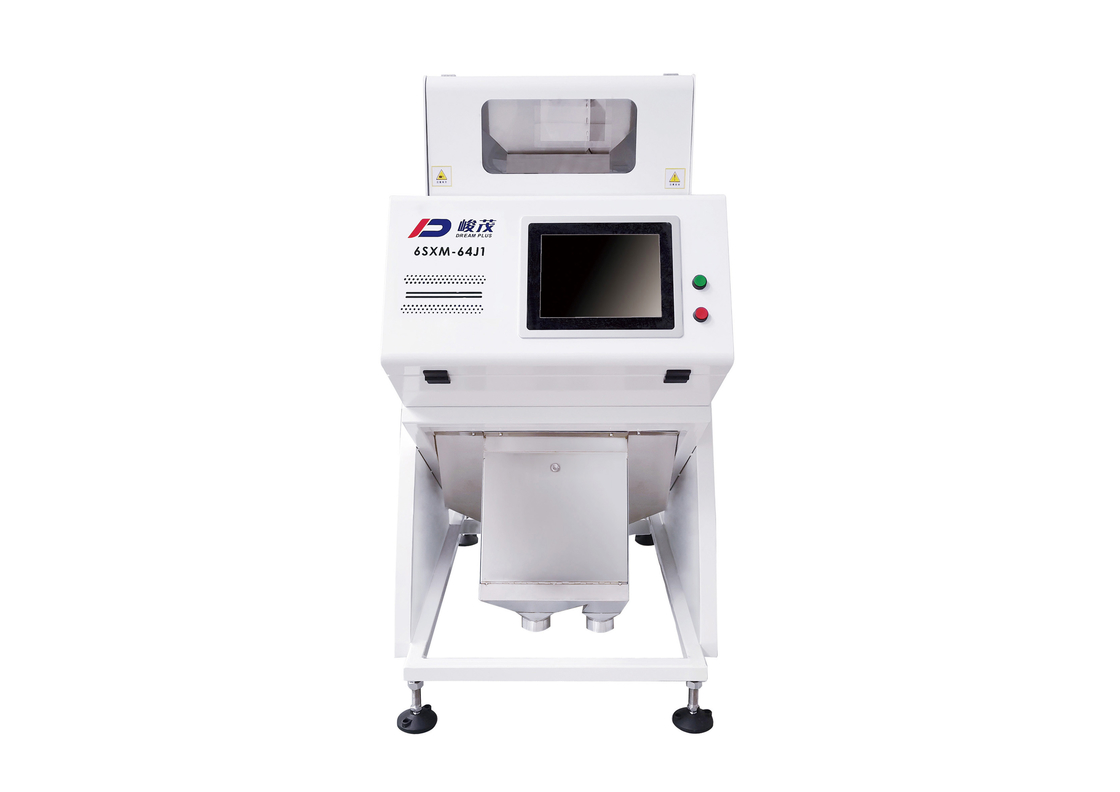

| Model | 6SXM-64J1 |
| Output(T/h) | 0.5-1.0 |
| Carryover Rate(Bad:Good) | >10:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤1.5 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 350(±5%) |
| Diamension(mm) | 955*1630*1550 |
Real Case
Wide Appllications
Want to Know more details about this product
